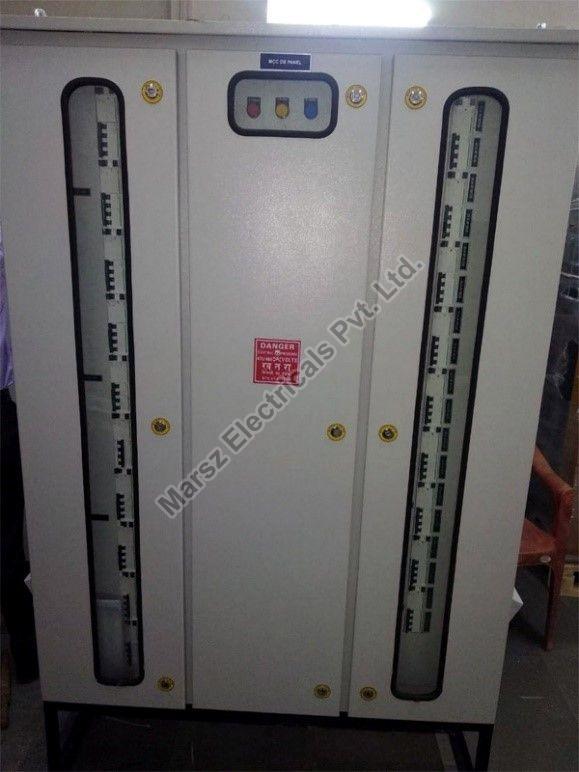

Draw Out Type MCC Control Panel

To meet the precise requirements of our clients, we are engaged in providing a broad range of Draw Out Type MCC Control Panel to our clients. This Draw Out Type MCC Control Panel is manufactured in strict adherence with set market quality standards and norms. Besides, these products are affordable in prices.

Offered in full draw-out and fixed types, in both compartmentalized and non-compartmentalized versions.

Highly dependable Modular type draw out type boards tested at CPRI and made to individual specifications. Draw out Consoles ensure minimum down time during break down.

Salient Features:

• Fully compartmentalized design
• Draw-out trolleys / module incoming and outgoing power and control contacts automatically, isolate without manual disengagement in three distinct position i.e. Service, Test and Isolate
• All similar sizes of Draw out modules are fully interchangeable.
• Totally enclosed vermin and dustproof.
• Safety shutters provide accidental contact from vertical bus bars.
• Latest design of our Draw-out enclosure provide maintenance free vertical bus bars without joint.
• Self – aligning and disconnecting power and control contact.
• Racking screw arrangement with telescopic rails system provide full proof contacts.
• Bearing mounted rollers ensure smooth movement of trolley.
• Standard module size minimum 225 mm and upto 1500 mm height.
• Bolted design and assembly allow ease of alteration or extension at site.
• Hinged auxiliary door inside main compartment door permit mounting of control accessories, such as meters, selector, switch, indicating lamps, push buttons and reset actuator.
• Spring loaded scraping earth ensure first make and last brake arrangement ensuring safety.
• Large cabling space with adequate cable supports are provided.
• Offered in full draw-out and fixed types, in both compartmentalized and non-compartmentalized versions.
